basic set

How to choose a basic set

  1. The devices used depend on the purpose of use and the solutions applied.
    If you have any questions, please feel free to contact us.

  2. 1. Select a chip

    type Standard Chip SY series
    DY series
    others
    Custom Made Chip
    material Borosilicate glass(Pyrex、TEMPAX)
    Fused quartz・・・only for Custom Made Chip
    PDMS(Polydimethylsiloxane)・・・only for Custom Made Chip
  3. 2. Select a holder compatible with the solvent to be used

    Aluminum Resistant to most chemicals but unsuitable for use with an acidic or basic solvent
    Stainless Steel Recommended if priority is placed on chemical resistance
  4. 3. Select capillary tubes

    More viscous solutions require tubes with larger diameters. If you have no particular preference, ICT-55P or ICT-30P is recommended. If you use PFA, choose ICT-55T.

  5. 4. Select chip connectors suitable for the capillary tubes

    ITJ-301 is usually recommended.

  6. 5. Select a pump according to the purpose of use of the chip

    Prepare the same number of syringes as the holes in the chip or a pneumatic pump having at least the same number of channels as the holes in the chip (see "left" or "right" in the table below). Use as many chip connectors as the holes in the chip (see the "all" column in the table below).

    number SY** DY** DI05 DR35 KG01 2CSK
    Number of Holes left 2 2 2 4 3 3
    right 1 2 2 4 1 3
    all 3 4 4 8 4 6
    Product Remarks
    ISP-10 Micro syringe pump
    One-body Type Syringe size: 10μL-147mL Number of syringes: 2
    Minimum flow rate: 0.001mL/h
    FLOWEZ
    series
    Pomp: pressure-based flow controller
    Channel:1ch
    Positive pressure type(mbar):25 or 69 or 345 or 1000 or 7000
    Negative pressure type(mbar):-25 or -69 or -345 or -800
    MFCS-EZ
    series
    Pomp: pressure-based flow controller
    Channel:2ch or 3ch or 4ch
    Positive pressure type(mbar):25 or 69 or 345 or 1000 or 7000
    Negative pressure type(mbar):-25 or -69 or -345 or -800

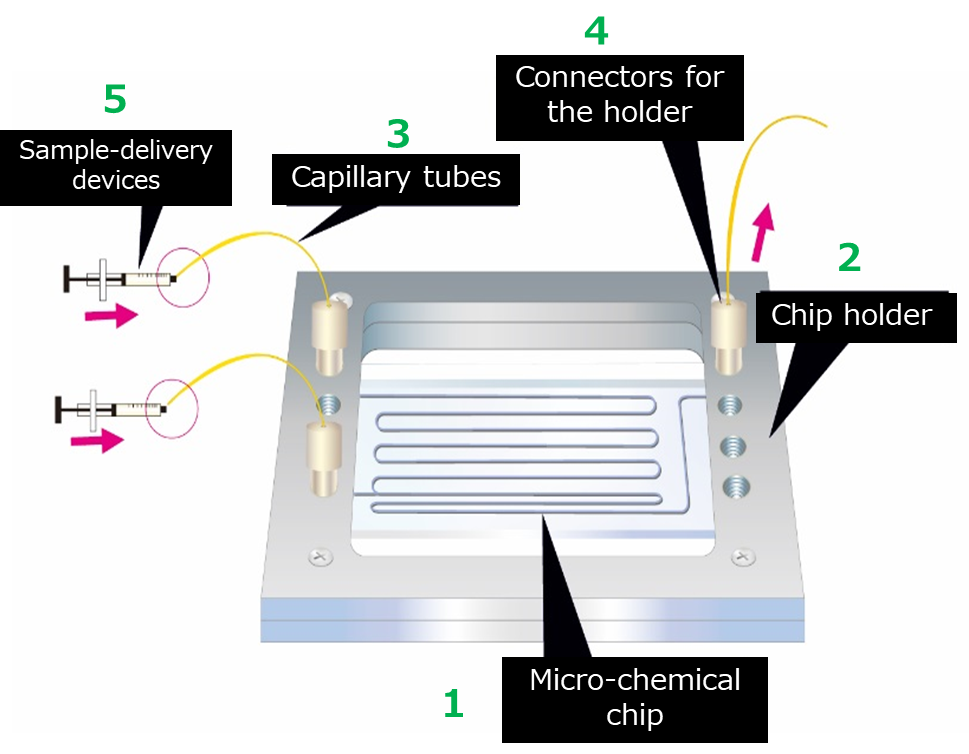

Basic set(example)

  1. Product Ordering # quantity
    1 Micro-chemical Chip ICC-SY05 1
    2 Holder CCC01 1
    3 Capillary tubes ICT-55P 1
    4 Tubing holder connector ITJ-301 3
    5 Sample-delivery devices MFCS-EZ 2ch – 1000 1
